SL/HT Series steam desuperheater
■ Product features
The SL/HT series steam desuperheater is a kind of modern equipment widely used for energy saving. The desuperheater consists of two assemblies, namely the atomization equipment for desuperheated water and the combined pneumatolytic unit. The atomization nozzle implements atomization for the desuperheated water with high pressure, which spreads in high-temperature steam current. The combined pneumatolytic unit forces the desuperheated water revolving, shearing and breaking and evaporated at the inner surface of the gasification unit so as to reduce the temperature of high temperature steam. The desuperheater features simple structure, high efficiency thermo-reduction, low energy consumption, less investment, easy operation and simple installation and repair.
■ Product type
Product type
Inlet steam quantity t/h
Inlet and outlet diameter
Inlet Temperature ℃
Outlet Temperature ℃
Pipe diameter for desuperheated water

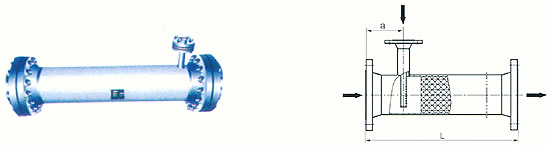

Length of equipment L
Distance between water Pipe and inlet L1
SL/HT0.6(1.0)-1.5/100
<1.5
100
250(425)
153(250)
32(25)
1000
150
SL/HT0.6(1.0)-3.0/100
1.5-3.0
100
250(425)
153(250)
32(25)
1000
150
SL/HT0.6(1.0)-5.0/150
3.0-5.0
150
250(425)
153(250)
32(25)
1100
150
SL/HT0.6(1.0)-7.0/200
5.0-7.0
200
250(425)
153(250)
32(25)
1200
170
SL/HT0.6(1.0)-10/200
7.0-10
200
250(425)
153(250)
32(25)
1200
170
SL/HT0.6(1.0)-15/200
10-15
200
250(425)
153(250)
40(32)
1200
170
SL/HT0.6(1.0)-20/250
15-20
250
250(425)
153(250)
40(32)
1300
170
SL/HT0.6(1.0)-30/300
20-30
300
250(425)
153(250)
50(32)
1400
200
SL/HT0.6(1.0)-40/400
30-40
400
250(425)
153(250)
50(32)
1600
200
Note: Pressure of desuperheated water is 2.0Mpa, flow rate (7-15)Steam quantity%; Figure in the bracket refers to the data of SL/HT 10 series steam desuperheaters.
